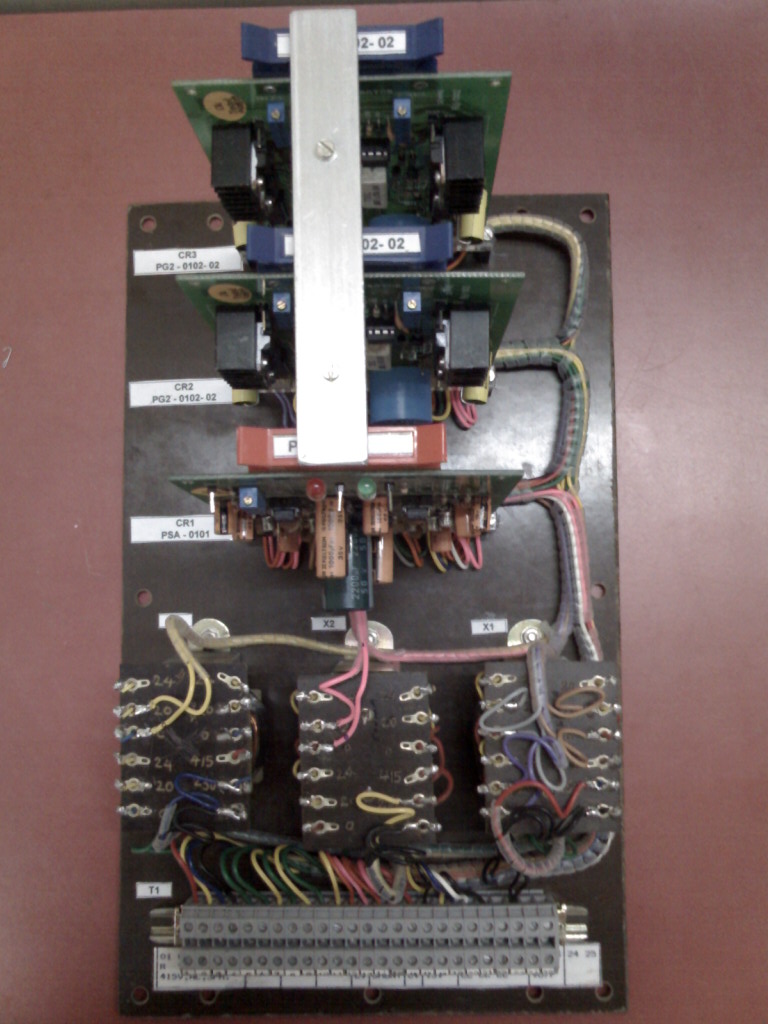

SCR Phase Controller Series: 3PC-01 Model: 03

  1. Home
  2. SCR Phase Controller

Description

DEWAG make 3-Phase SCR Controller is designed to control phase angle of SCRs in 3 phase half controlled SCR-Diode bridge configuration. It is ideal for use in Battery Charger, Power Supply etc. applications.

Features

  • Smooth Phase angle control over entire range
  • Soft start for limiting inrush current
  • Gate circuit protection
  • Constant Voltage/Constant Current modes
  • Auto/manual operating modes
  • Plug-in PCBs for ease of maintenance
  • Easy to install

Dimensions

  • Overall: 360mm(L) X 215mm(W) X 200mm(H)
  • Mounting: By 4 screws, 5mm dia.

Technical Specifications

  • Supply Voltage:- 415V AC, 3ph., 4wire

Ordering Information

  • Series: 3PC-01 Model: 03
  • Output Voltage: 24V, 48V, 110V, 220V DC
